Deploy a Cross-Chain Bridge

Introduction​

In this tutorial, we will be building a bridge between WAGMI and Fuji. This bridge will help us to transfer native WGM coin wrapped into wWGM back and forth from the WAGMI chain to the Fuji chain. Using this guide, you can deploy a bridge between any EVM-based chains for any ERC20 tokens.

The wrapped version of a native coin is its pegged ERC20 representation. Wrapping it with the ERC20 standard makes certain processes like delegated transactions much easier. You can easily get wrapped tokens by sending the native coin to the wrapped token contract address.

We will be using ChainSafe's bridge repository, to easily set up a robust and secure bridge.

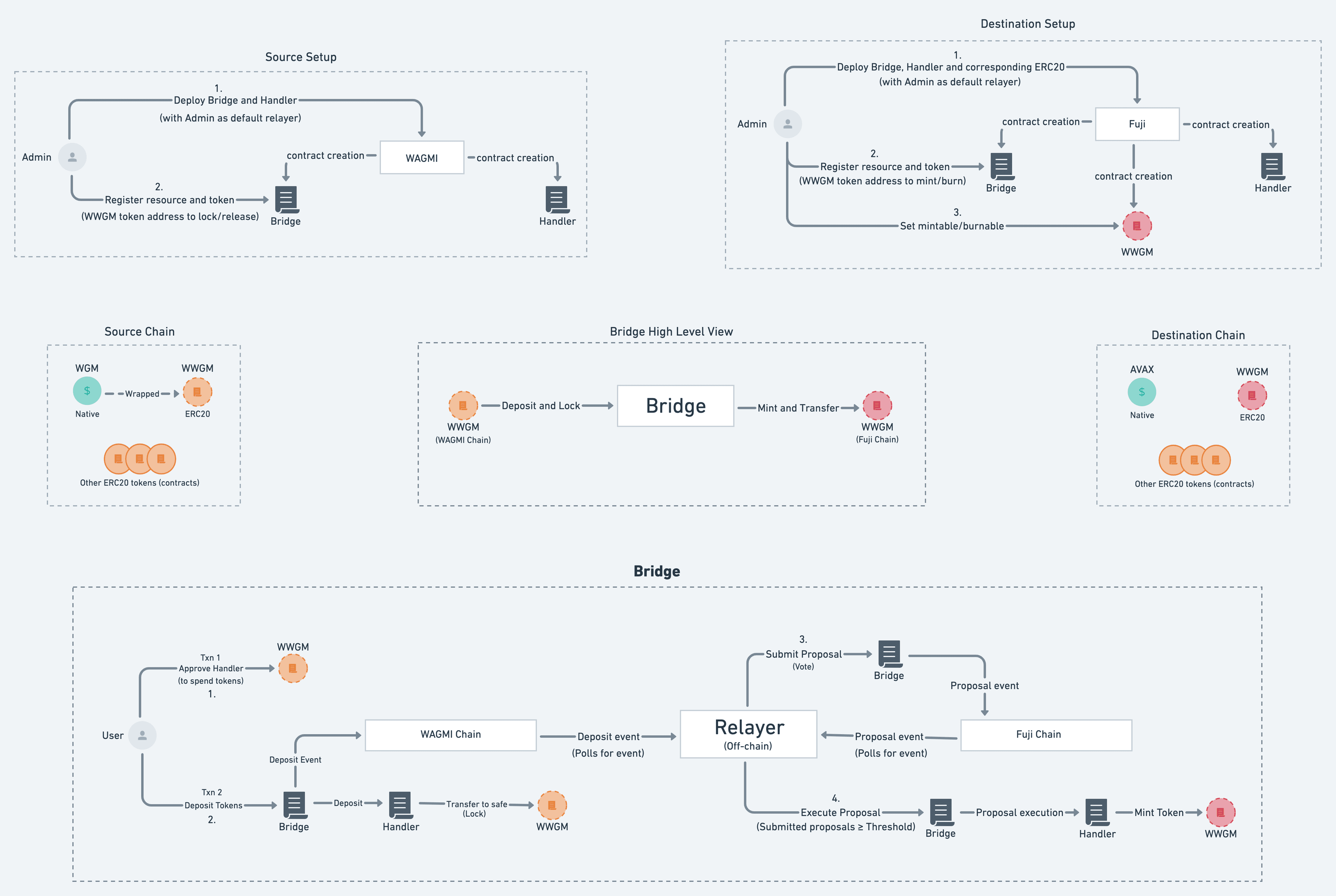

Workflow of the Bridge​

WAGMI and Fuji chains are not interconnected by default, however, we could make them communicate. Relayers watch for events (by polling blocks) on one chain and perform necessary action using those events on the other chain. This way we can also perform bridging of tokens from one chain to the other chain through the use of smart contracts.

Here is the basic high-level workflow of the bridge -

1. Users deposit token on the Bridge contract
2. Bridge contract asks Handler contract to perform deposit action
3. Handler contract locks the deposited token in the token safe
4. Bridge contract emits Deposit event
5. Relayer receives the Deposit event from the source chain
6. Relayer creates a voting proposal on the destination chain to mint a new token
7. After threshold relayer votes, the proposal is executed
8. Tokens are minted to the recipient's address

Bridging tokens from source to destination chain involves the lock and mint approach. Whereas bridging tokens from destination to source chain involves burn and release approach. We cannot mint and burn tokens that we do not control. Therefore we lock them in the token safe on the source chain. And mint the corresponding token (which we will deploy and hence control) on the destination chain.

Requirements​

These are the requirement to follow this tutorial:

• Set up WAGMI and Fuji on Core
• Import wWGM token (asset) on the WAGMI network (Core). Here is the address - 0x3Ee7094DADda15810F191DD6AcF7E4FFa37571e4
• WGM coins on the WAGMI chain. Drip 1 WGM from the WAGMI Faucet.
• AVAX coins on the Fuji chain. Drip 10 AVAX from the Fuji Faucet. If you already have an AVAX balance greater than zero on Mainnet, paste your C-Chain address there, and request test tokens. Otherwise, please request a faucet coupon on Guild. Admins and mods on the official Discord can provide testnet AVAX if developers are unable to obtain it from the other two options.
• Wrapped WGM tokens on the WAGMI chain. Send a few WGM coins to the wWGM token address (see second point), to receive the same amount of wWGM. Always keep some WGM coins, to cover transaction fees.

Setting Up Environment​

Let's make a new directory deploy-bridge, where we will be keeping our bridge codes. We will be using the following repositories:

• ChainSafe/chainbridge-deploy: This will help us in setting up of our bridge contracts
• ChainSafe/ChainBridge: This will help us in setting up of our off-chain relayer.

Installing ChainBridge Command-Line Tool​

Using the following command, we can clone and install ChainBridge's command-line tool. This will help us in setting up bridge contracts and demonstrating bridge transfers. Once the bridge contracts are deployed, you can use its ABI and contract address to set up your UI.

git clone -b v1.0.0 --depth 1 https://github.com/ChainSafe/chainbridge-deploy \
&& cd chainbridge-deploy/cb-sol-cli \
&& npm install \
&& make install

This will build the contracts and installs the cb-sol-cli command.

Setting Up Environment Variables​

Let's set up environment variables, so that, we do not need to write their values every time we issue a command. Move back to the deploy-bridge directory (main project directory) and make a new file configVars. Put the following contents inside it -

SRC_GATEWAY=https://subnets.avax.network/wagmi/wagmi-chain-testnet/rpc
DST_GATEWAY=https://api.avax-test.network/ext/bc/C/rpc

SRC_ADDR="<Your address on WAGMI>"
SRC_PK="<your private key on WAGMI>"
DST_ADDR="<Your address on Fuji>"
DST_PK="<your private key on Fuji>"

SRC_TOKEN="0x3Ee7094DADda15810F191DD6AcF7E4FFa37571e4"
RESOURCE_ID="0x00"

• SRC_ADDR and DST_ADDR are the addresses that will deploy bridge contracts and will act as a relayer.
• SRC_TOKEN is the token that we want to bridge. Here is the address of the wrapped ERC20 version of the WGM coin aka wWGM.
• RESOURCE_ID could be anything. It identifies our bridged ERC20 tokens on both sides (WAGMI and Fuji).

Every time we make changes to these config variables, we have to update our bash environment. Run the following command according to the relative location of the file. These variables are temporary and are only there in the current terminal session, and will be flushed, once the session is over. Make sure to load these environment variables anywhere you will using them in the bash commands (like $SRC_GATEWAY or $SRC_ADDR)

Setting Up Source Chain​

We need to set up our source chain as follows:

• Deploy Bridge and Handler contract with $SRC_ADDR as default and only relayer
• Register the wWGM token as a resource on the bridge

Deploy Source Contracts​

The command-line tool cb-sol-cli will help us to deploy the contracts. Run the following command in the terminal session where the config vars are loaded. It will add SRC_ADDR as the default relayer for relaying events from the WAGMI chain (source) to the Fuji chain (destination).

One of the most important parameter to take care of while deploying bridge contract is the expiry value. It is the number of blocks after which a proposal is considered cancelled. By default it is set to 100. On Avalanche Mainnet, with this value, the proposals could be expired within 3-4 minutes. You should choose a very large expiry value, according to the chain you are deploying bridge to. Otherwise your proposal will be cancelled if the threshold number of vote proposals are not received on time.

You should also keep this in mind that sometimes during high network activity, a transaction could stuck for a long time. Proposal transactions stuck in this scenario, could result in the cancellation of previous proposals. Therefore, expiry values should be large enough, and relayers should issue transactions with a competitive max gas price.

cb-sol-cli --url $SRC_GATEWAY --privateKey $SRC_PK --gasPrice 25000000000 deploy \
    --bridge --erc20Handler \
    --relayers $SRC_ADDR \
    --relayerThreshold 1 \
    --expiry 500 \
    --chainId 0

The output will return deployed contracts' (Bridge and Handler) address. Update the configVars file with these addresses by adding the following 2 variables and loading them to the environment.

SRC_BRIDGE="<resulting bridge contract address>"
SRC_HANDLER="<resulting erc20 handler contract address>"

Make sure to load these using the source command.

Configure Resource on Bridge​

Run the following command to register the wWGM token as a resource on the source bridge.

cb-sol-cli --url $SRC_GATEWAY --privateKey $SRC_PK --gasPrice 25000000000 bridge register-resource \
    --bridge $SRC_BRIDGE \
    --handler $SRC_HANDLER \
    --resourceId $RESOURCE_ID \
    --targetContract $SRC_TOKEN

Setting Up Destination Chain​

We need to set up our destination chain as follows:

• Deploy Bridge and Handler contract with $DST_ADDR as default and only relayer
• Deploy mintable and burnable ERC20 contract representing bridged wWGM token
• Register the wWGM token as a resource on the bridge
• Register the wWGM token as mintable/burnable on the bridge
• Giving permissions to Handler contract to mint new wWGM tokens

Deploy Destination Contracts​

Run the following command to deploy Bridge, ERC20 Handler, and wWGM token contracts on the Fuji chain. Again it will set DST_ADDR as the default relayer for relaying events from Fuji chain (destination) to WAGMI chain (source). For this example, both SRC_ADDR and DST_ADDR represent the same thing.

cb-sol-cli --url $DST_GATEWAY --privateKey $DST_PK --gasPrice 25000000000 deploy\
    --bridge --erc20 --erc20Handler \
    --relayers $DST_ADDR \
    --relayerThreshold 1 \
    --chainId 1

Update the environment variables with the details which you will get by running the above command. Don't forget to load these variables.

DST_BRIDGE="<resulting bridge contract address>"
DST_HANDLER="<resulting erc20 handler contract address>"
DST_TOKEN="<resulting erc20 token address>"

Configuring Resource on Bridge​

Run the following command to register deployed wWGM token as a resource on the bridge.

cb-sol-cli --url $DST_GATEWAY --privateKey $DST_PK --gasPrice 25000000000 bridge register-resource \
    --bridge $DST_BRIDGE \
    --handler $DST_HANDLER \
    --resourceId $RESOURCE_ID \
    --targetContract $DST_TOKEN

Setting Token as Mintable and Burnable on Bridge​

The bridge has two options when it receives a deposit of a token:

• Lock the received token on one chain and mint the corresponding token on the other chain
• Burn the received token on one chain and release the corresponding token on the other chain

We cannot mint or burn any token which we do not control. Though we can lock and release such tokens by putting them in a token safe. The bridge has to know which token it can burn. With the following command, we can set the resource as burnable. The bridge will choose the action accordingly, by seeing the token as burnable or not.

cb-sol-cli --url $DST_GATEWAY --privateKey $DST_PK --gasPrice 25000000000 bridge set-burn \
    --bridge $DST_BRIDGE \
    --handler $DST_HANDLER \
    --tokenContract $DST_TOKEN

Now let's permit the handler to mint the deployed ERC20 (wWGM) token on the destination chain. Run the following command.

cb-sol-cli --url $DST_GATEWAY --privateKey $DST_PK --gasPrice 25000000000 erc20 add-minter \
    --minter $DST_HANDLER \
    --erc20Address $DST_TOKEN

Deploy Relayer​

All the on-chain setups like deploying bridges, handlers, tokens, etc. are complete. But the two chains are not interconnected. We need some off-chain relayer to communicate messages between the chains. The relayer will poll for deposit events on one chain, and submit vote proposals to mint or release the corresponding token on another chain.

Since we set the relayer threshold to 1, while deploying the bridge and handler, we require a voting proposal from only 1 relayer. But in production, we should use a large set of relayers with a high threshold to avoid power concentration.

For this purpose, we will be using ChainSafe's relayer. Follow the steps described below to deploy the relayer.

Cloning and Building Relayer​

Open a new terminal session, while keeping the previous session loaded with environment variables. We have to load the environment variables in this session too. Load these variables in this session too using the source command.

Now, move to the deploy-bridge directory and run the following command to clone the relayer repository (implemented in Go), and build its binary.

git clone -b v1.1.1 --depth 1 https://github.com/ChainSafe/chainbridge \
&& cd chainbridge \
&& make build

This will create a binary inside the chainbridge/build directory as chainbridge.

Configuring Relayer​

The relayer requires some configurations like source chain, destination chain, bridge, handler address, etc. Run the following command. It will make a config.json file with the required details in it. You can update these details, as per your need.

echo "{
  \"chains\": [
    {
      \"name\": \"WAGMI\",
      \"type\": \"ethereum\",
      \"id\": \"0\",
      \"endpoint\": \"$SRC_GATEWAY\",
      \"from\": \"$SRC_ADDR\",
      \"opts\": {
        \"bridge\": \"$SRC_BRIDGE\",
        \"erc20Handler\": \"$SRC_HANDLER\",
        \"genericHandler\": \"$SRC_HANDLER\",
        \"gasLimit\": \"1000000\",
        \"maxGasPrice\": \"50000000000\",
        \"http\": \"true\",
        \"blockConfirmations\":\"0\"
      }
    },
    {
      \"name\": \"Fuji\",
      \"type\": \"ethereum\",
      \"id\": \"1\",
      \"endpoint\": \"$DST_GATEWAY\",
      \"from\": \"$DST_ADDR\",
      \"opts\": {
        \"bridge\": \"$DST_BRIDGE\",
        \"erc20Handler\": \"$DST_HANDLER\",
        \"genericHandler\": \"$DST_HANDLER\",
        \"gasLimit\": \"1000000\",
        \"maxGasPrice\": \"50000000000\",
        \"http\": \"true\",
        \"blockConfirmations\":\"0\"
      }
    }
  ]
}" >> config.json

Check and confirm the details in the config.json file.

Set Up Keys​

Give relayer access to your keys. Using these keys, the relayer will propose deposit events and execute proposals. It will ask to set a password for encrypting these keys. Every time you start the relayer, it will ask for this password.

./build/chainbridge accounts import --privateKey $SRC_PK

./build/chainbridge accounts import --privateKey $DST_PK

Let's Test the Bridge​

The setup is now complete - both on-chain and off-chain. Now we just have to start the relayer and test the bridge. For testing purposes, we will be using cb-sol-cli to make deposit transactions on the bridge. But you can make your frontend and integrate it with the bridge using the ABIs.

Start Relayer​

Run the following command to start the relayer. It will print logs of all the events associated with our bridge, happening on both the chains. So keep the relayer running and follow the next commands in the other terminal session.

./build/chainbridge --config config.json --verbosity trace --latest

Approve Handler to Spend my Tokens​

Now, let's deposit tokens on the WAGMI bridge. But before that, we need to approve the handler to spend (lock or burn) tokens on our (here SRC_PK) behalf. The amount here is in Wei (1 ether (WGM) = 10^18 Wei). We will be approving 0.1 wWGM.

cb-sol-cli --url $SRC_GATEWAY --privateKey $SRC_PK --gasPrice 25000000000 erc20 approve \
    --amount 100000000000000000 \
    --erc20Address $SRC_TOKEN \
    --recipient $SRC_HANDLER

Deposit Tokens to the Bridge​

Once approved, we can send a deposit transaction. Now let's deposit 0.1 wWGM on the bridge. The handler will lock (transfer to token safe) 0.1 wWGM from our address (here SRC_PK) and mint the new tokens on the destination chain to the recipient (here DST_ADDR).

cb-sol-cli --url $SRC_GATEWAY --privateKey $SRC_PK --gasPrice 25000000000 erc20 deposit \
    --amount 100000000000000000 \
    --dest 1 \
    --bridge $SRC_BRIDGE \
    --recipient $DST_ADDR \
    --resourceId $RESOURCE_ID

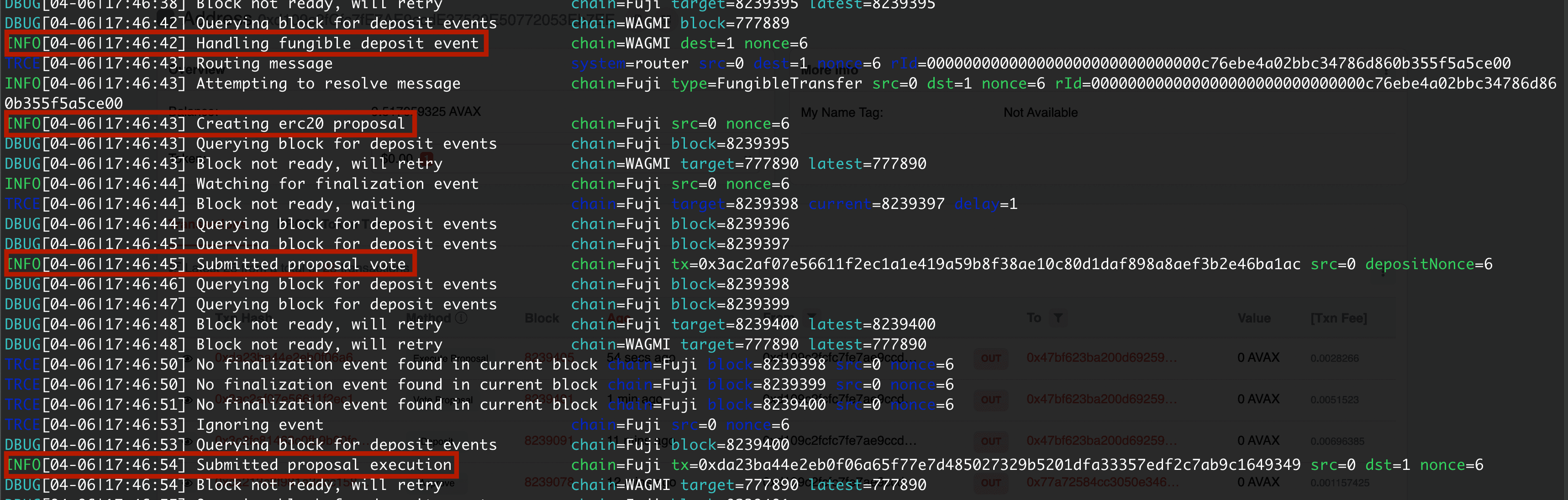

This transaction will transfer 0.1 wWGM to token safe and emit a Deposit event, which will be captured by the relayer. Following this event, it will send a voting proposal to the destination chain. Since the threshold is 1, the bridge will execute the proposal, and new wWGM minted to the recipient's address. Here is the screenshot of the output from the relayer.

Similarly, we can transfer the tokens back to the WAGMI chain.

Conclusion​

Similar to the above process, you can deploy a bridge between any 2 EVM-based chains. We have used the command-line tool to make approvals and deposits. This can be further extended to build a frontend integrated with the bridge. Currently, it depends on a single relayer, which is not secure. We need a large set of relayers and a high threshold to avoid any kind of centralization.

You can learn more about these contracts and implementations by reading ChainSafe's ChainBridge documentation.
